Brake Actuators Brake ChambersBrake Chamber (Disc brake)

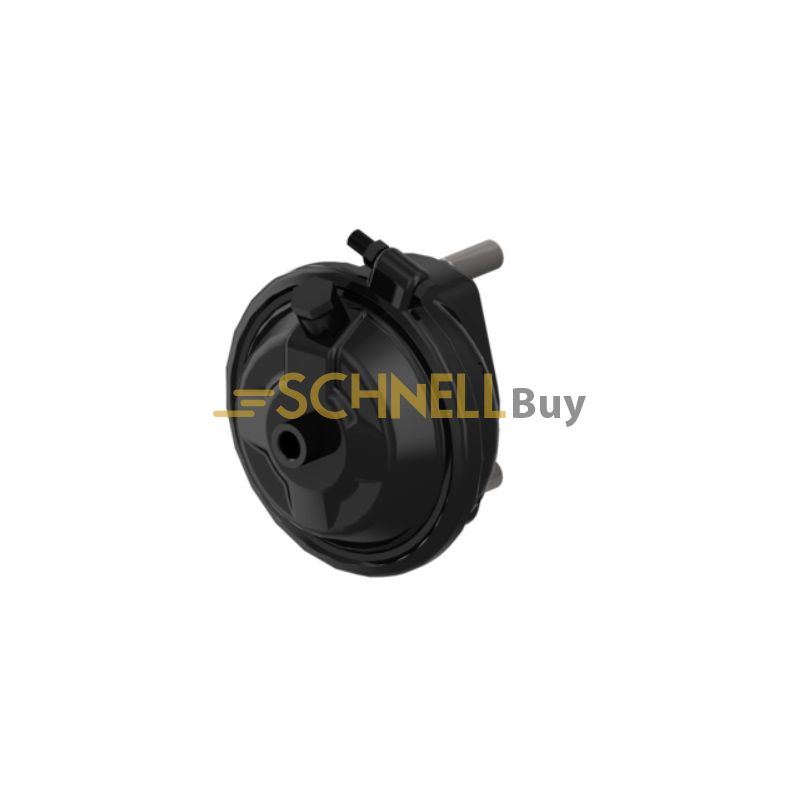

Brake Chamber (Disc brake)
Product No
: SNL81505241
OEM
:
WA4231047100 50397001 1505241 1932621 AJV4526 3454108160 13844 3454106560 4454108160 4454106560 A0064205224 1505241 007912 14338 169345 1815504 445332068 A0064205224 0064205224 334652 505812866 5058128660 5812866 58128660 2001001 2001036 4231047100
Stock
: In Stock
Add to List
:
Add to List

Related Products

Spring Brake (Wedge Brake)
Oem No: 1518657, 997077234019, 11014309
Product No: SNL81518657
Add to List
Brake Chamber (Disc brake)
Oem No: 0174208018, A0174208018, 4235140010
Product No: SNL0174208018
Add to List
Brake Chamber (Disc brake)
Oem No: 423 114 710 0 445332026 1505244 HB100202 13C3505412AA 1505244 1932638
Product No: SNL81932638
Add to List
Brake Chamber (Disc brake)
Oem No: 423 514 002 0, 0174208118, A0174208118, 4235140020
Product No: SNL80174208118
Add to List
Brake Chamber (Disc brake)
Oem No: WA4231047100, 50397001 1505241, 1932621 AJV4526, 3454108160 13844, 3454106560, 4454108160, 4454106560 A0064205224, 1505241 007912, 14338 169345, 1815504 445332068, A0064205224, 0064205224, 334652, 505812866, 5058128660, 5812866, 58128660, 2001001, 2001036, 4231047100
Product No: SNL81505241
Add to List
Brake Chamber (Disc brake)
Oem No: 1524852, 81511016371, 81511019371, 81511016371
Product No: SNL81524852
Add to List
Brake Chamber (Disc brake)
Oem No: 81511016372, 81511016373, 81511016374, 81511016408
Product No: SNL881511016372
Add to List
Brake Chamber (Disc brake)
Oem No: 81511016423, 81511016423, 4231047110, 423 104 711 0
Product No: SNL881511016423
Add to List
  • Bolt lengths
    43.0 mm
  • Bolt threads
    M16 x 1.5
  • Calculated Volume (dm³)
    3.58
  • Clamp band
    166 mm
  • Clamp band position
    20°
  • Distance between bolts
    120.6 mm
  • Max. operating pressure
    10.2 bar
  • Operating pressure
    10.2 bar
  • Output force
    8100 N
  • Output force m
    8100 N
  • Port (side)
    M16 x 1.5
  • Port (top)
    M16 x 1.5
  • Port angle
    0°
  • Port threads
    M16 x 1.5
  • Product category
    Device
  • Push-rod length
    15 mm
  • Push-rod thread
    Ball R8
  • Return-spring force
    220 N
  • Stroke
    57.0 mm
  • Technical specification
    OE specification
  • Temperature range
    -40°C to +80°C
  • Total length
    121.0 mm
  • Type
    16
  • Type of operation
    Disc
  • Version
    Without boot
  • Size (mm x mm x mm)
    142 x 184 x 137
  • UPC
    193133245896
  • Weight (kg)
    3.005
  • Weight (lb)
    6.6249
